Nu-Ray Metals 1750 Panels
NRM-1750 panels combine architectural panel aesthetics with structural panel performance.
View all Images/Colors

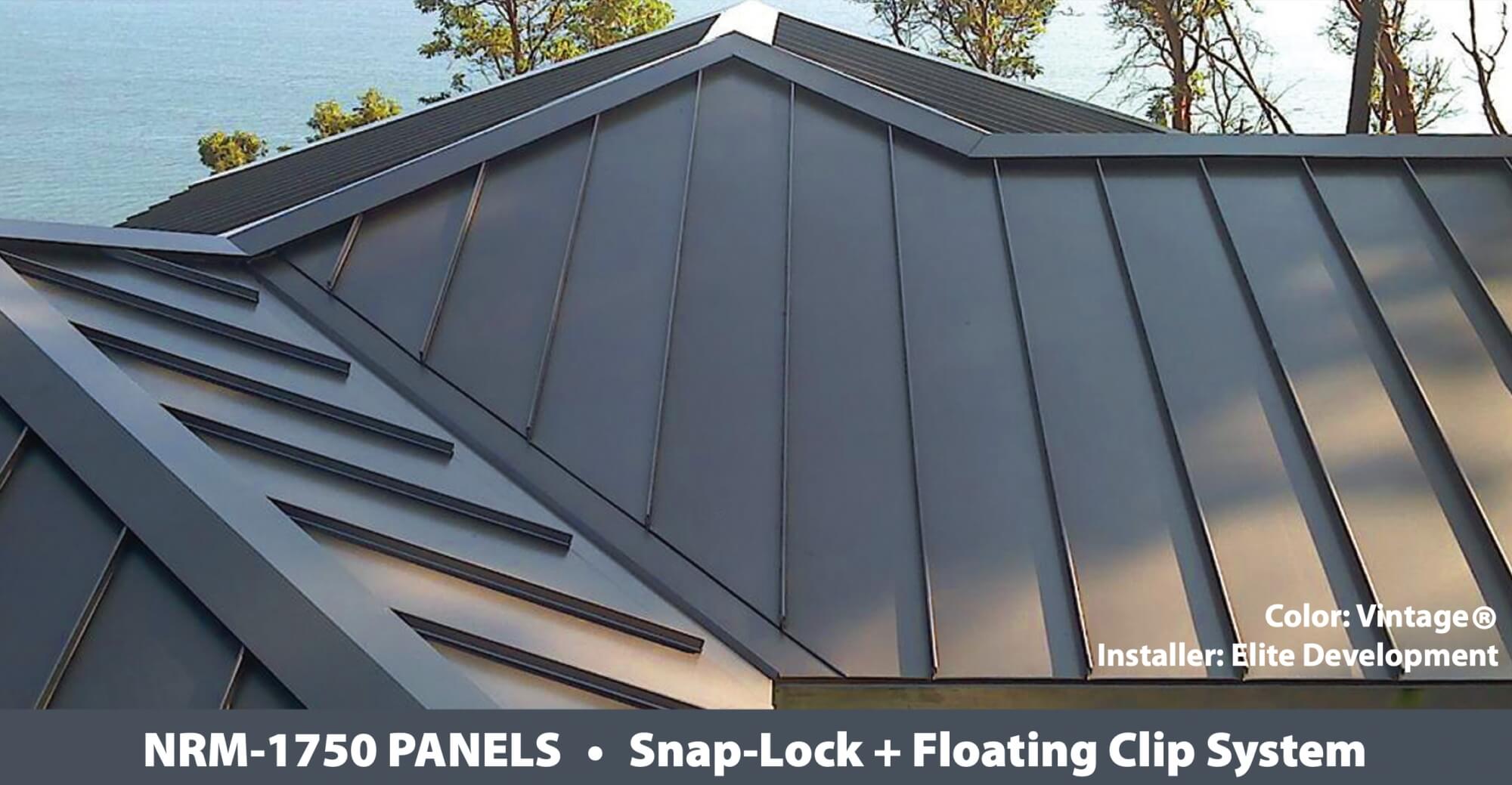

NRM-1750 panels combine architectural panel aesthetics with structural panel performance. The panel is produced in continuous lengths. Optional factory-applied seam sealant improves weather resistance. Factory eave notching aids in installation of hook eave flashing. Standard panel length is 4' 0˝ to 44' 0˝. On-site forming is available for longer lengths; please check with Nu-Ray Customer Service. NRM-1750 features 1¾˝ leg height and continuous interlock for enhanced structural performance and wind resistance. A concealed clip system allows thermal expansion/contraction while providing extraordinary hold-down strength. Two clips are available: a standard clip for mansard and fascia applications; and a high performance clip for UL 90 Rated roof installations.
Colors, sizes, & quantities vary based on WCS location. Please visit our contact form here for your inquiries. Updated 8/15/22.
All content is copyrighted & owned by Nuray Metal Products, Inc.
