Nu-Ray Metals 2000 Panels

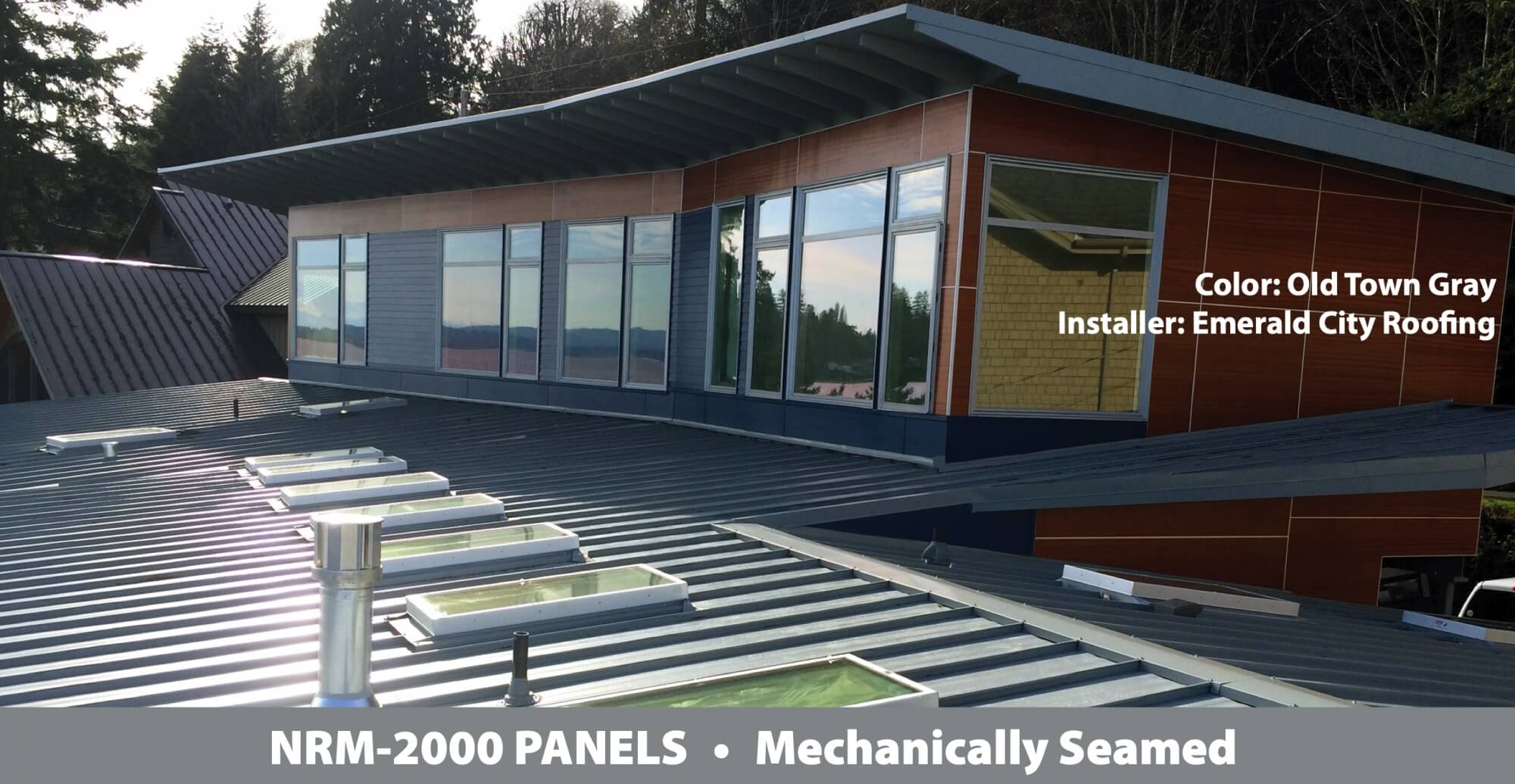

NRM-2000 panels are ideal for low-slope applications, combining structural panel performance with architectural panel aesthetics. Optional factory-applied seam sealant can be applied for additional weather resistance on low-slope applications. Maximum panel length is variable as Nu-Ray has the capability to form continuous panels on site for long roof sections. Maximum factory-formed panel length is 44’ 0˝. Minimum panel length is 1’ 0˝. NRM-2000 features 1½˝ leg height that requires mechanical field seaming after installation. The panel employs a concealed-fastener floating clip system that allows thermal expansion/contraction.

Colors, sizes, & quantities vary based on WCS location. Please visit our contact form here for your inquiries. Updated 8/15/22.
